Fingerprint Access Control Standalone Terminal
Features

Biosense III-T features a color screen design for access control or time attendance management. It also has an IP65 certified weatherproof exterior.
which allows system designers to install the terminal in both indoor and outdoor environments.

  • Android NFC / Bluetooth, ios Bluetooth
  • 400 sets of the function key.
  • Anti-pass back / Anti duress.
  • Basic Time & Attendance (First IN / Last OUT).
  • Color screen with touch keypad.
  • LOGs data real-time PUSH.
  • Indoor and outdoor use (IP65 certificated).
  • Standalone, WEB-Based Management and network capability.
  • Support AUTO Get IP (DHCP) for easy setup.
Products Specification

Software Application

Software Application: SoMac / Browser
Verification Mode: Fingerprint / Card / PIN
Proximity: EM / Mifare / HID
Fingerprint Template Capacity: 9,590
Fingerprint Sensor Type: Optical
Fingerprint Sensor Resolution: 500 dpi
1:1 Verification Time: < 600 msec
1:1,000 Identification Time: < 760 msec
User Capacity: 20,000
Function Keys: 400 SET
Time Sets / Time Zones / Group: 255 / 120 / 255 SET
Holiday Dates: 100 SET
Access & Event Logs / System Logs: 65,536 / 1,536

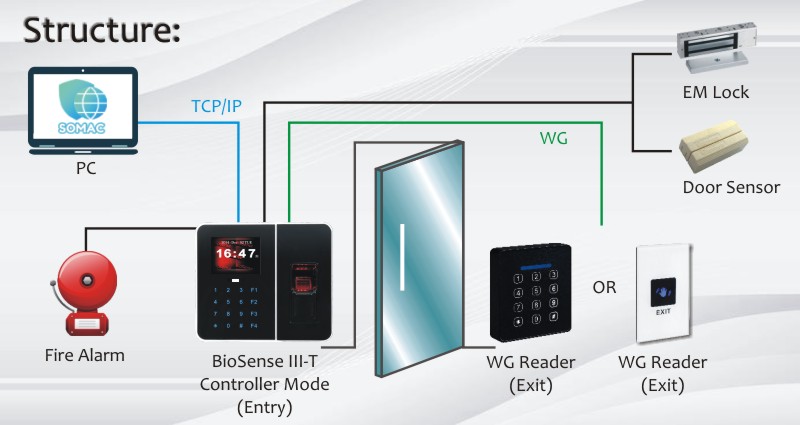

Inputs: 3 Inputs, (1) Exit button (2) Door Sensor (3) Fire Alarm
Relay Outputs: 1 output for Lock (COM/NO/NC)
Web Base Management: Yes
Support real time log PUSH methodology: Yes
Wiegand Inputs: 26/34 bits Wiegand reader
Wiegand Outputs: 26/34 bits Wiegand reader
IP Mode: Static IP / AUTO IP (DHCP Client)
LED Indicators: Blue / Green / Red LED
Speaker: Indication: Optional
Buzzer: Single Tone
TFT Color LCD: 2.8"
Capacitive Touch Keys: 4 x 4
Anti-Tampering Switch: Yes

COMMUNICATION DATA

TCP / IP: 10 / 100 Base-T
Wiegand: 26 / 34 bits

ELECTRICAL DATA & CONDITIONS

Power Consumption: 500 mA ± 5%
Operation Voltage: 9 ~ 24VDC / 1A
Output Relay: 30VDC, 1A
Operation Temperature: 0°C ~ 65°C
Operation Humidity: 5% ~ 80% RH

PHYSICAL DATA

Dimension: 160.2 x 140.2 x 46.7mm
Weight: 0.6 kg
Installation: Indoor / Outdoor (IP65 weatherproof)
Other
Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
