Features

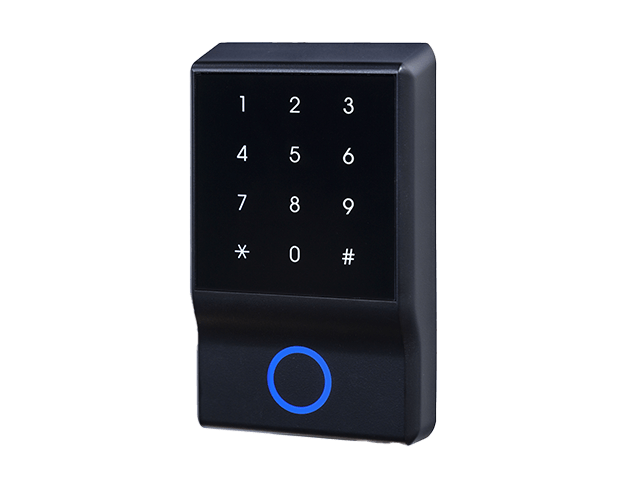

CSS-R11 is a POE Proximity Access Control and Time & Attendance Terminal is designed for access control and time attendance, and features an IP65 rated waterproof and touch keypad.

It also offers simplified device installation with support for both a relay box and POE relay box. The TCP/IP-based controller allows for easy management via the in-built webserver and SOMAC centralized software.

The device supports various frequencies including EM, Mifare, Desfire, and HID, and offers NFC and BLE verification.

For installation, users can choose between the CSS-R11 + CSS-A11 (POE relay box) or CSS-R11 + CSS-A10 (Relay box) options, which both support TCP/IP and communication between devices and the server.

  • Log data real time PUSH
  • Weatherproof IP65 rate suitable for both indoor and outdoor environment
  • RFID card + Password verification
  • Support Android NFC-enabled Mobile device
  • Standalone with build in WebServer
  • Assign IP camera for capturing snapshot
  • Network Optix Video Management System version available
  • Simplified installation with Ethernet cable
Products Specification

GENERAL DATA

Verification Mode: Card /Password
Software Application: SoMac
Card Capacity: 20,000 (50,000 extendable)
System Log/Entry Log: 1,536/65,535
Time Set/Time Zone/Group: 255/120/255 Sets
Holiday: 100 Sets
Remote Control/Event Handle: Yes/Yes
Fast Registry: Yes
Anti Pass Back/Anti Duress: Yes/Yes
LED Indicators: Blue/Green/Red LED
Proximity 125Khz: EM/HID
Proximity 13.56Mhz: ISO14443A CSN, ISO14443B CSN, Desfire EV1, Felica, Custom sectors on MIFARE, Android NFC-enabled Mobile device
Touch Keypad: 4x4 capacitive
POE Relay Controller (CSS-A11): Optional
Relay Controller (CSS-A10): Optional

COMMUNICATION DATA

Communications: TCP/IP, Wiegand Input/RS485
DIO Support: DI: 3 / DO:1
Inbuilt Relays (Max. Power Loading): Door Lock (1A,30VDC)

ELECTRICAL DATA & CONDITIONS

Power Requirement: 9~24VDC/1A
Power Consumption: 560mA ± 5%
Operation Temperature: 0˚C ~ 55˚C
Operation Humidity: 5%~80% RH

PHYSICAL DATA

Dimension: 78.5 x 129 x 23 mm
Weight: 122 g

Structure

CSS-R11
Ordering information
E: PEM 125KHz
M: Mifare 13.56MHz
H: HID 125KHz
Other
Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
