Features

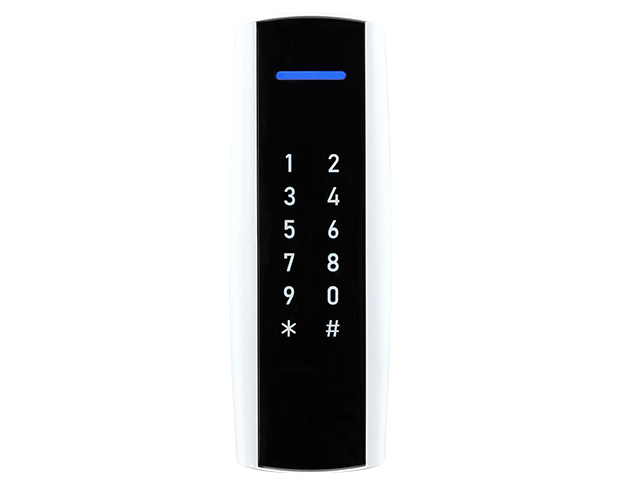

CHIYU CSS-R16 RFDI Access Controller - the latest addition to the CHIYU product line.
This innovative access controller features a user-friendly web-based UI, making it easy to manage access control settings.

Its weatherproof design ensures durability in various weather conditions.
CSS-R16 supports OSDP/WG/TCP/IP connections, providing versatility for different access control systems.

It also supports multiple frequencies, Bluetooth, and NFC verification, offering multiple options for user authentication.
With these advanced features, the CHIYU CSS-R16 access controller is an excellent choice for enhancing your access control card reader.

  • Enhanced access control with multi-frequency
  • Online remote and monitoring management
  • Resistant to water and dust for outdoor use
  • Easy and convenient mobile access control
  • Mullion case with a sleek and aesthetic design
  • Multiple authentication methods: PIN/RFID/Mobile
  • Advanced security features including encryption and tamper detection
  • OSDP interoperability between different access control devices
Products Specification

GENERAL DATA

Verification Mode: Card /PIN /Card + PIN /Mobile APP
Software Application: SoMac /Browser
Proximity: Standard: MIFARE + BLE /NFC
Option: EM /HID(125KHz)
Transmit Frequency: 125KHz /13.56MHz /2.4GHz
Host Communication: TCP/IP(10/100M Based)/Http Web Management
Reader Communication: WG /OSDP V1 /V2 reader
13.56 MHz Compatibility: ISO14443A CSN, ISO14443B CSN, ISO15693 CSN, Desfire EV1/EV2 Sector, NFC-enabled Mobile device
Card Capacity: 20,000
System Log: 2,688
Entry Log: 45,000
Time Set /Time Zone /Group: 255 /120 /255 Sets
Remote Control /Event Handle: Yes /Yes (with BF-50)
Anti Pass Back /Anti Duress: Yes /Yes
Touch Keypad: Yes
LED Indicators: 1-LED with Triple Colors (R /G /B)
IP: Static IP /DHCP
Built-in Relay: 1 relay (COM /NO /NC) for door lock
Buzzer: Single Tone
Capacitive Touch Keys: 2 x 6

COMMUNICATION DATA

Communications: TCP/IP, Wiegand Input /RS485 /OSDP
Wiegand: 1 channel
Wiegand Input: 26 /34 /66 bits

ELECTRICAL DATA & CONDITIONS

Power Requirement: 9~24VDC/1A
Power Consumption: 300mA ± 5%
Operation Temperature: 0˚C ~ 55˚C
Operation Humidity: 5%~80% RH
Waterproof: IP54

PHYSICAL DATA

Dimension: 160 x 57 x 28 mm

Structure

CSS-R16
CSS-R16
Ordering information
M: Mifare 13.56Mhz + BLE/ NFC (standard)
E: EM 125Khz + Mifare 13.56Mhz + BLE/ NFC (option)
H: HID 125Khz + Mifare 13.56Mhz + BLE/ NFC (option)
Option: BF-50 secure I/O box
Other
Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
