CSS-V15Q

Face Reader Attendance Machine

The CSS-V15 Face Reader Attendance Machine System from Chiyu Technology is a cutting-edge solution designed to transform how organizations manage access control and time attendance. This device features an intuitive interface and robust security capabilities, making it perfect for modern workplaces that prioritize efficiency and hygiene. With support for multiple verification modes—face recognition, pincode, and card access—the CSS-V15 face biometric reader attendance machine offers unparalleled flexibility to suit various operational environments.

Chiyu's commitment to innovation ensures that the CSS-V15 face reading attendance machine is at the forefront of biometric technology, making it an essential tool for any organization looking to enhance their attendance tracking and security measures. Explore our range of facial recognition solutions, including the CSS-V25 Facial Recognition Terminal, to find the perfect fit for your business needs. Or, discover more about our face recognition reader products!

Features

CSS-V15Q is a face recognition access control attendance system that can be used for both access control and time attendance. Its user-friendly interface and high level of security, combined with its robust performance, make it a highly reliable face access controller in the market.

Employees can effortlessly clock in and out by simply standing in front of the machine, which scans their face in less than a second. This rapid identification process not only enhances convenience but also effectively combats issues like time theft and buddy punching, thus streamlining attendance data management. The advanced facial recognition system minimizes the need for human intervention while providing accurate data. Its security features, including anti-spoofing technology, are specifically designed to thwart attempts to bypass the system using photographs or masks.

Live Face Detection (LFD)
Dual Camera Fast Recognition
Mask detection for touchless solution
Support for Time Server Synchronization
PUSH methodology for real-time LOGs data
Snapshot Image Log for attendance & events
QR CODE functionality for enhanced versatility
Access Control and Time & Attendance combined
Built-In Web Server for easy browser management
Near-infrared LED according to surrounding brightness
Sleek and efficient design with User-Friendly 4.3” Touch Screen

Products Specification

GENERAL DATA

Software Application: SoMac/ Browser

Dual CPU: ARM M4 32bit 180MHz and Quad-core ARM Cortex-A7 32bit 1.5Ghz, NPU (upto 2TOPS)

Memory: 32 MB SDARM/8 GB Flash

Verification Mode: FACE/ PIN/ Card

Proximity: EM/ Mifare/ Desfire/ Mobile NFC&BLE

Face Capacity: 1:N 25,000/ 1:1 100,000

Card Capacity: 100,000

Max. User Capacity: 100,000

Access Transaction Log: 100,000

System Log: 10,000

Snapshot Log: 5,000 Images

Web Base Management: Yes

On-Board Reader Support: 1 OSDP V1/V2 or 1 Wiegand readers

Accuracy / System Logs: FRR 1% @ FAR 0.000001% (1/100,000,000)

1:N Face Recognition Speed: <450ms (<300ms @10,000)

Access Levels (Time Sets/ Time Zones/ Group): 255 per reader schedule (255/ 120/ 255 SET)

Holiday Schedule Set: 100

Inputs: 3 inputs, Exit Button/ Door Sensor/ Fire Alarm

Outputs: 2 relays, 30VDC 2A, Form C with dry contacts: Door Lock relay x 1, Event Alarm relay x 1

Tamper: Yes

Live Face Detection (Anti-Spoofing): Yes

Face Scan Distance: 30cm - 1.3M

COMMUNICATION

10/100 Base-T TCP/IP: Yes Static IP/Auto IP (DHCP Client)

RS485: Yes

Wiegand: 1 channel IN or OUT

USB: USB 2.0 host

INDICATION DATA & USER INTERFACE

Andible Speaker: 16 bits mono

Camera System: Dual Camera (RGB + IR)

FOV (Field of View): Vertical viewing angle of 65°

LED: Multi-Color

LCD: 4.3 inches touch

Capacitive Touch Keys: 4

ELECTRICAL DATA & CONDITIONS

Operation Voltage: 12V DC/ 1.5A

Operation Temperature: 0°C ~ 50°C

Operation Humidity: 10% ~ 80% RH

PHYSICAL DATA

Dimension: 122.5 x 185 x 75.3 mm

Weight: 645 g

Installation: Indoor

INTERNATIONAL STANDARDS & WARRANTY

CE, FCC, ROHS: Yes

Warranty: 1 Year

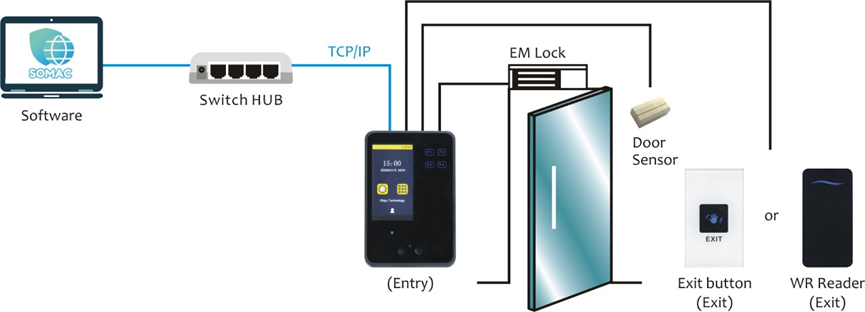

Structure

Ordering information

E: EM 125KHz

M: Mifare/ Desfire 13.56MHz

DNB: Desfire/ NFC/ BLE

Other

Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
