CSS-V25Q

Facial Recognition Terminal

For another facial recognition terminal like CSS-V15 Face Reader Attendance Machine, welcome to learn more.

Features

CSS-V25Q is a face recognition access control attendance system that can be used for both access control and time attendance. Its user-friendly interface and high level of security, combined with its robust performance, make it a highly reliable face access controller in the market.

Live Face Detection (LFD)
Dual Camera Fast Recognition
Mask detection for touchless solution
Support for Time Server Synchronization
PUSH methodology for real-time LOGs data
Snapshot Image Log for attendance & events
QR CODE functionality for enhanced versatility
Access Control and Time & Attendance combined
Built-In Web Server for easy browser management
Near-infrared LED according to surrounding brightness
Sleek and efficient design with User-Friendly 4.3” Touch Screen

Products Specification

GENERAL DATA

Software Application: SoMac/ Browser

Dual CPU:ARM M4 32bit 180MHz and Quad-core ARM Cortex-A7 32bit 1.5Ghz, NPU (upto 2TOPS)

Memory: 32 MB SDARM/8 GB Flash

Verification Mode: FACE/ PIN/ Card

Proximity: EM/ Mifare/ Desfire/ Mobile NFC&BLE

Face Capacity: 1:N 25,000/ 1:1 100,000

Suprema Fingerprint: 9,590

Card Capacity:100,000

Max. User Capacity:100,000

Access Transaction Log: 100,000

System Log: 10,000

Snapshot Log: 5,000 Images

Web Base Management: Yes

On-Board Reader Support:1 OSDP V1/V2 or 1 Wiegand readers

Accuracy / System Logs: FRR 1% @ FAR 0.000001% (1/100,000,000)

1:N Face Recognition Speed: < 450ms (less than 300ms @10,000)

Access Levels (Time Sets/ Time Zones/ Group): 255 per reader schedule (255/ 120/ 255 SET)

Holiday Schedule Set: 100

Inputs: 3 inputs, Exit Button/ Door Sensor/ Fire Alarm

Outputs: 2 relays, 30VDC 2A, Form C with dry contacts: Door Lock relay x 1, Event Alarm relay x 1

Tamper:Yes

Live Face Detection (Anti-Spoofing): Yes

Face Scan Distance: 30cm - 1.3M

COMMUNICATUON

10/100 Base-T TCP/IP: Yes Static IP/Auto IP (DHCP Client)

RS485: Yes

Wiegand: 1 channel IN or OUT

USB: USB 2.0 host

INDICATION DATA & USER INTERFACE

Andible Speaker: 16 bits mono

Camera System:Dual Camera (RGB + IR)

FOV (Field of View): Vertical viewing angle of 65°

LED: Multi-Color

LCD: 4.3 inches touch

Capacitive Touch Keys: 4

ELECTRICAL DATA & CONDITIONS

Operation Voltage: 12V DC/ 1.5A

Operation Temperature: 0°C ~ 50°C

Operation Humidity: 10% ~ 80% RH

PHYSICAL DATA

Dimension: 122.5 x 185 x 75.3 mm

Weight: 685 g

Installation: Indoor

INTERNATIONAL STANDARDS & WARRANTY

CE, FCC, ROHS: Yes

Warranty: 1 Year

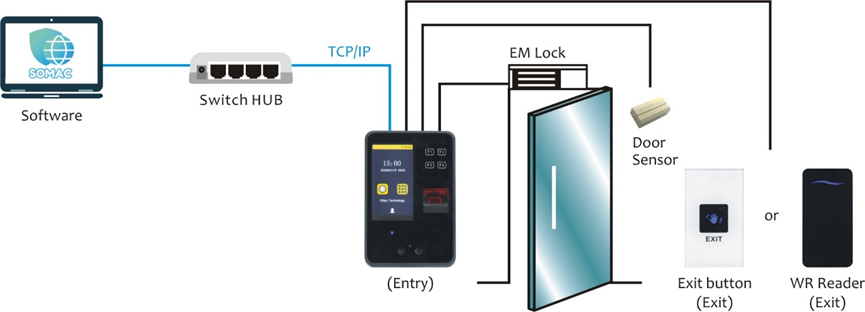

Structure

Ordering information

E: EM 125KHz

M: Mifare/ Desfire 13.56MHz

DNB: Desfire/ NFC/ BLE

Other

Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
