Web based Wiegand Type Access Control Panel
Features

Web based Wiegand Type Access Control Panel

The Wiegand Door Access Control Panel is designed to support 1 to 4 doors, making it suitable for a variety of access control applications. The power box cover is designed to make installation easier, allowing system installers to measure the wiring length at each site and door. Additionally, the controller can be hidden in the management room for a more secure environment. The device features a web server for managing user accounts and system configurations, which is a trend that makes it easier for system operators to fulfill their scenarios. For added convenience, the device is available with optional metal box and power supply versions, including EU/US type power supply with 3.5A UPS or 4.2A power. This makes it suitable for a range of applications, including car parking solutions. Overall, the Wiegand Door Access Control Panel is a reliable and versatile solution for access control, featuring easy installation, a web-based interface, and optional metal box and power supply versions for added convenience.

  • Application for 1 door (D1), 2 doors (D2), 4 Doors (D4).
  • Optional with functional design power box.
  • Inbuilt relays for door exit button / door lock / door sensor.
  • IP camera integrated if needed for real-time image monitoring.
  • Up to 20,000 user accounts can be registered.
  • Economic solution for RFID card access control site.
  • Remote control integrated.
Products Specification
Model SEMAC-D1 SEMAC-D2 SEMAC-D4
Door Capacity 1 2 4
Wiegand Interface 2 4 4
Exit Button Connection 1 2 4
EM Lock Connection 1 2 4
Sensor Connection 1 2 4
Access Log 60,000 entries 60,000 entries 60,000 entries
Extendable TTL Interface (Require extra component) 2 (Reserved) 1 (Reserved) 1 (Reserved)
Extendable Input (Require extra component) 2 (Reserved) 2 (Reserved) 2 (Reserved)
Extendable Output (Optional relay box module) 4 (Optional) 4 (Optional) 4 (Optional)
Fire Alarm Connection V V V
Power Box LED Connection V V V
TCP/IP Interface V V V
Two Ways Access Control V V X
Accessibility To Wiegand Reader's Light and Buzzer V V V
Power Requirement DC 9~24V DC 9~24V DC 9~24V
Power Consumption (Exclude external device) 180mA 220mA 300mA
Suggest Power Spec. (Include extra relay box module and wiegand readers) 1A 1.5A 2A
EM Lock Relay Box Spec. 10A 277VAC/28VDC 10A 277VAC/28VDC 10A 277VAC/28VDC
Extend Input Spec. 0~3.3V 0~3.3V 0~3.3V
Extend Output Spec. 0~3.3V 0~3.3V 0~3.3V
Wiegand Reader Power Requirement 9~24V 9~24V 9~24V
Reader Communication Mode Wiegand 26~66 bit Wiegand 26~66 bit Wiegand 26~66 bit
Max. Range For Wiegand Reader 80 Meters 80 Meters 80 Meters
Operation Temperature 0~55℃ 0~55℃ 0~55℃
Operation Humidity 5%~80%, RH 5%~80%, RH 5%~80%, RH
Dimension 138 × 114 × 27mm 200 × 114 × 27mm 200 × 114 × 27mm
Weight 150g 200g 250g

Structure

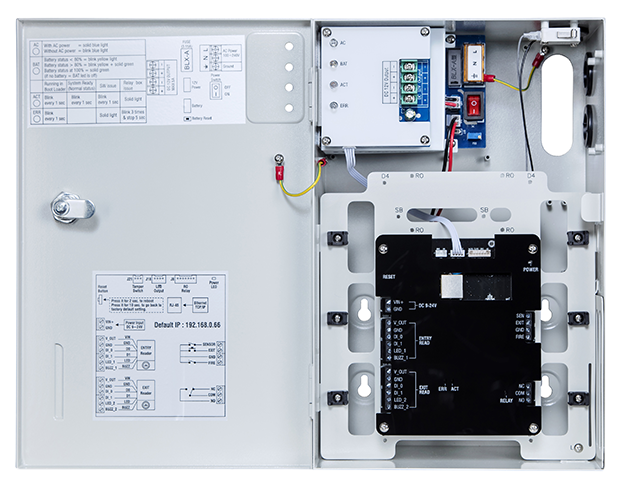

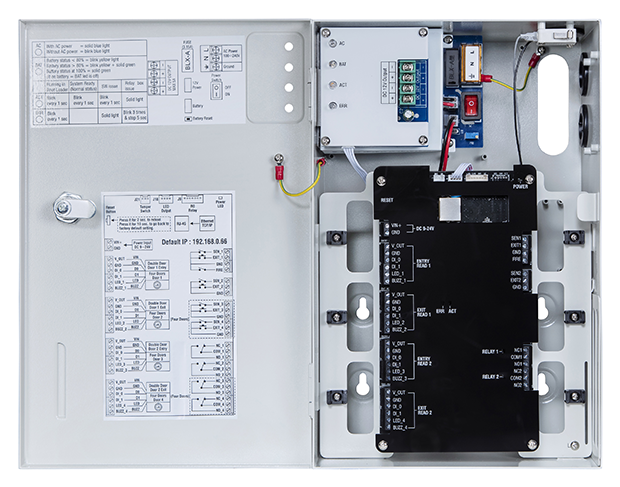

SEMAC-EP

Key Features

  • Manage 1 door 2 ways / 2 doors 2 ways / 4 doors 1 way
  • Built in WEB server, accessible via cell phone or PC pad
  • 20,000 user cards / 60,000 logs and event reports / 1,500 system logs
  • Authorized settings: time setting / zone setting / group setting / holiday setting
  • Support any kind of Wiegand reader with 26 / 34 / 66 format
  • WAN: automatically uploads logs and keeps server updated
  • DDNS: one server to hundreds devices
  • DIO function for event such as fire alarm system triggering device without delay
  • Anti pass back and inter-locking functions for people and visitors management at different areas (jail, military, bank, etc.)
  • Easy to upgrade via internet web server or TFTP tool
  • Online fast registry
  • Combine IP camera to centralize captured pictures when swiping cards or event triggered
  • First administrator card and multi badges functions
  • High accuracy timer IC with annual time deviation less than 2.5 minutes. Without power supply, lithium battery itself can support up to 6~8 years (will not consume battery energy when power is back on)
Optional 4 relay box module : 3 events handle & 1 for security or energy
Other
Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
