Features

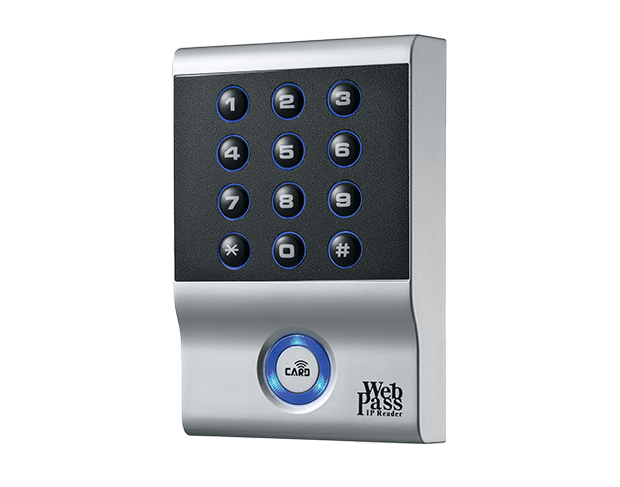

Proximity RFID Access Control Terminal is a standalone device that comes with an optional PoE module. It is an IP54-rated weatherproof RFID access controller reader that can be connected to multiple Webpass readers over a single intranet (LAN). Each shipped item package comes with SOMAC, which is proprietary access control management software. SOMAC can manage single or multiple units of Webpass IP Readers in an RFID access control system.

Optional Poe function (Power over Ethernet).
Frequency - EM / Mifare / HID.

  • Logs data real time PUSH
  • Standalone dummy Reader
  • PoE function support (option)
  • Web based single door controller
  • Slim and dexterous hardware design
  • Cost-Effective door controller solution
  • Integration with NX surveillance system
  • Indoor and outdoor use (IP54 certificated)
  • Web-based management and network capability
  • Free software provides for advance management
Products Specification

GENERAL DATA

Verification Mode: Card/Password
Software Application: SoMac
Card Capacity: 20,000 (50,000 extendable)
Communications: TCP/IP, Wiegand/RS485
DIO Support: DI: 3 / DO: 1
Inbuilt Relays (Max. power loading): Door Lock/Ring (120VAC, 0.5A / 30VDC, 1A)
Power Over Ethernet: Yes (Option)
(Conjunction box required)
Option Accessories: Conjunction box (Wiring/PoE)
System Log: 1,536 entries
Entry Log: 65,535 entries
Time Set/Time Zone/Group: 255 / 120 / 255 Sets
Holiday: Yes
Remote Control/Event Handle: Yes/Yes
Fast Registry: Yes
Anti-Pass Back/Anti Duress: Yes/Yes

ELECTRICAL DATA & CONDITIONS

Power Consumption: 400mA ± 5%
Power Requirement: 9~24VDC/1A
Operation Temperature: 0˚C~65˚C
Operation Humidity: 5%~80% RH

COMMUNICATION DATA

TCP/IP: 10/100 Base-T
Wiegand: 26/34 bits

PHYSICAL DATA

Dimension: 120 x 80 x 28mm
Weight: 150g

INTERNATIONAL STANDARDS & WARRANTY

Certification: CE, FCC, ROHS, IP54
Warranty: 2 Years

Structure

Webpass
Ordering information
E: EM 125KHz
M: Mifare 13.56MHz
H: HID 125KHz
Other
Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
