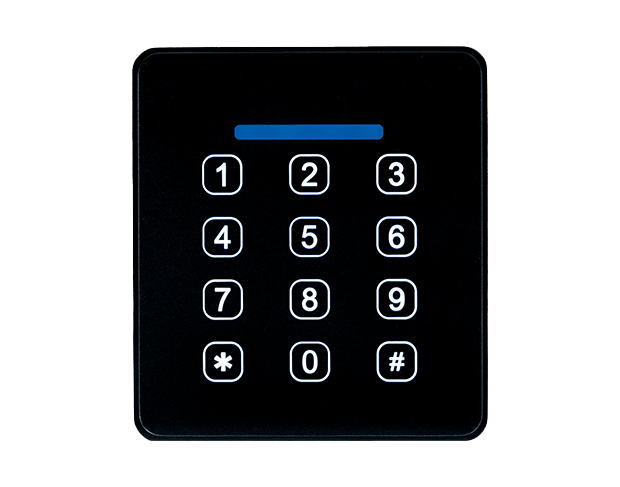

WR-M5&TWR-M5

WR-M5&TWR-M5
WR-M5&TWR-M5
WR-M5&TWR-M5
WR-M5&TWR-M5
Features

Chiyu Technology provides the latest access control reader to fulfill your whole access control solutions. These readers are with modern design and basic IP65 weatherproof.

Both Wiegand and OSDP v2 reader support.

OSDP v2 Features:

It permits data to be encrypted during the transfer from readers to their hosts – and back. OSDP v2 also lets you configure a reader in real-time and directly from your control system; no more disconnecting or uninstalling readers. Importantly, CHIYU'S OSDP v2 readers use MIFARE DESFire technology, so seamlessly integrate into an existing MIFARE system is provided.

  • RFID Card Type: Mifare (13.56MHz)
  • NFC Verification + Bluetooth Verification (WR-M5/TWR-M5)
  • Reading Range: 5 ~ 10 cm
  • Time for Card verification: 100ms
  • Power Consumption: Avg. 200mA
  • Communication: Wiegand/RS485 (Optional OSDP)
  • LED indicator: YES
  • Transmit Distance: 100M
  • ESD Protection: ± 2.5KV
  • Power Requirement: 9 ~ 24VDC (200mA)
  • Operation Temperature: 0°C ~ 55°C
  • Operation Humidity: 5% ~ 80%
  • Build-In Transceiver / Receiver, Watch Dog.
  • IP65 Weather Proof, Reader anti-collision, Self-Diagnostic, Surge Protection, Buzzer.
  • Dimension: 84.2 x 93.7 x 20mm (WR-M5/TWR-M5)
  • Weight: 95g
Products Specification
Model WR-M5 TWR-M5
RFID card type Mifare / NFC / BLE Mifare / NFC / BLE
Verification time 100ms 100ms
Power consumption 150mA 200mA
Communication WG26 / 34 WG26 / 34
LED Red / Blue / Green Red / Blue / Green
Transmit distance 100M 100M
ESD protection +2.5KV +2.5KV
Built-in Watch Dog Yes Yes
IP65 rated weatherproof Yes Yes
Card Collision Algorithm Yes Yes
Self-diagnostic Yes Yes
Surge Protection Yes Yes
Buzzer Yes Yes
Power requirement DC 9~24V(200mA) DC 9~24V(200mA)
Operation Temperature -20℃ ~ 70℃ -20℃ ~ 70℃
Operation humidity 5% ~ 80% RH 5% ~ 80% RH
Dimension 84.2 × 93.7 × 20mm 84.2 × 93.7 × 20mm

Structure

Ordering information
E: EM 125KHz
M:M
H:HID 125KHz
Other
Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods

All products with 2 years warranty.
